What Is ROS 2?
ROS 2 — the Robot Operating System 2 — is an open-source middleware framework that provides the tools, libraries, and conventions developers use to build robot software. Despite the name, it is not an operating system in the traditional sense. It runs on top of Linux, Windows, or macOS and provides a structured way for different parts of a robot's software to communicate, share data, and coordinate behavior.
ROS 2 is the successor to ROS 1, redesigned from the ground up to address the limitations of its predecessor — particularly around real-time performance, security, and multi-robot support. It is now the standard framework for serious robotics development in research, education, and industry.
Why Does a Robot Need a Framework Like This?
A robot is not a single program. It is a collection of concurrent processes — reading sensors, processing images, planning motion, controlling motors, logging data, communicating with operators — all running simultaneously and needing to exchange information reliably.
Without a framework, a developer would need to build all of that communication infrastructure from scratch for every project. ROS 2 solves this by providing:
- A standardized message-passing system so software components can talk to each other
- A large library of pre-built tools and packages for common robotics tasks
- A consistent way to structure, build, and test robot software
- Support for simulation environments so you can test before deploying to hardware
Core Concepts You Need to Know
Nodes
A node is a single executable process that performs one focused task — reading a lidar sensor, computing a path, publishing motor commands. A complete robot system is made up of many nodes running simultaneously.
Topics
Nodes communicate by publishing and subscribing to topics. A topic is a named channel that carries a specific type of message. A camera node might publish images to a /camera/image_raw topic. A vision node subscribes to that topic, processes the images, and publishes results to another topic. Neither node needs to know anything about the other — they just agree on the topic name and message type.
Messages
Messages are the data structures passed between nodes. ROS 2 includes standard message types for common data — sensor readings, geometry, images, joint states — and you can define custom message types for your own needs.
Services
Topics are one-way and continuous. Services provide a request-response pattern for operations that need a direct answer — asking a navigation system for the current robot pose, or commanding a gripper to open and waiting for confirmation.
Actions
Actions are for longer-running tasks where you want to send a goal, receive feedback during execution, and get a final result — navigating to a waypoint, for example. They are built on top of topics and services.

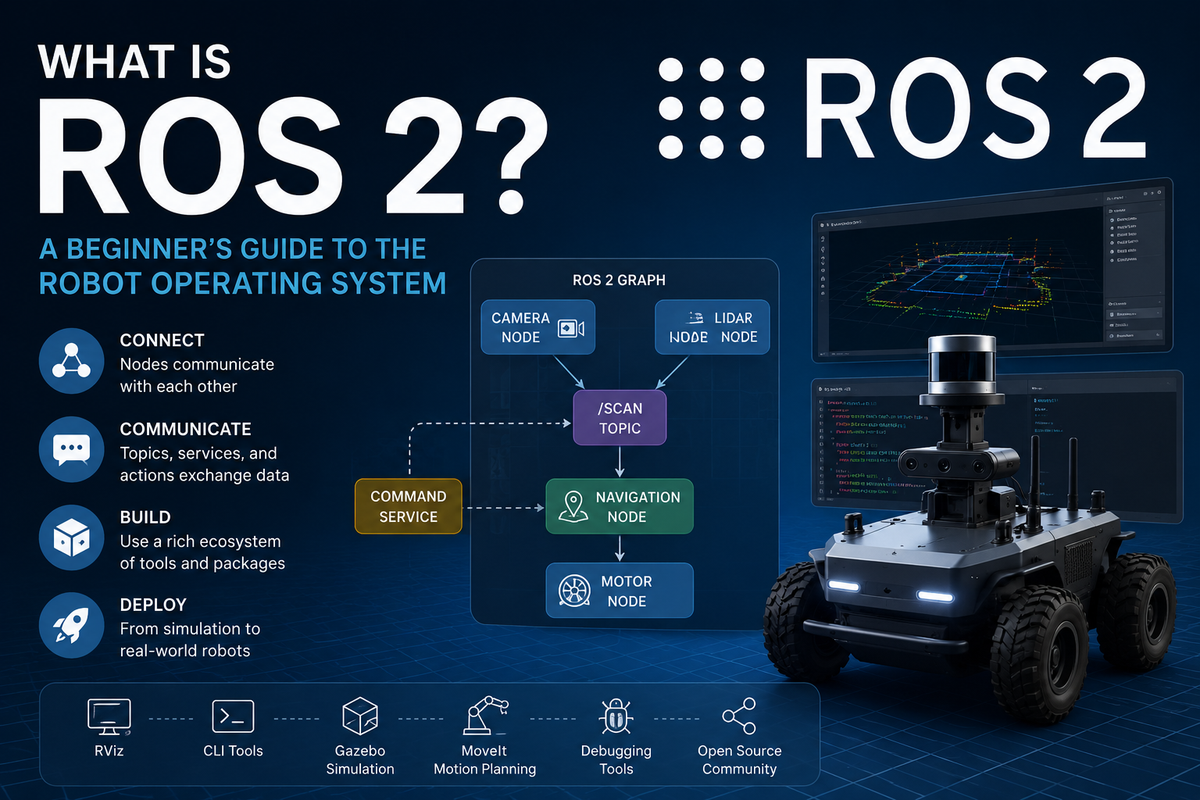

The ROS 2 Graph
At runtime, all the nodes, topics, services, and actions in a system form the ROS 2 computation graph. Tools like rqt_graph let you visualize this graph, which is invaluable for understanding and debugging a running robot system.
How ROS 2 Differs from ROS 1
ROS 1 was built for research environments where a single trusted network and a single master process were reasonable assumptions. As robotics moved into production and safety-critical applications, those assumptions became liabilities.
ROS 2 was rebuilt around DDS (Data Distribution Service), an industrial communication standard that provides:
- No single point of failure — there is no ROS master; nodes discover each other automatically
- Real-time support — the communication layer can meet deterministic timing requirements
- Security — DDS supports authentication, encryption, and access control
- Multi-robot support — multiple robots can operate on the same network without interference
For beginners, the practical difference is that ROS 2 is more robust, better documented for modern hardware, and has a longer support horizon. New projects should use ROS 2.
Where ROS 2 Fits in a Robotics System
ROS 2 sits in the software layer between your hardware drivers and your high-level application logic. A typical system looks something like this:
- Hardware layer — motors, sensors, cameras, actuators
- Driver layer — ROS 2 nodes that read hardware and publish data to topics
- Processing layer — nodes for perception, localization, mapping, planning
- Control layer — nodes that translate plans into motor commands
- Application layer — your mission logic, user interface, or autonomous behavior
ROS 2 provides the communication backbone that connects all of these layers. You can swap out individual nodes — replace one localization algorithm with another, for example — without rewriting the rest of the system.
What Can You Build with ROS 2?
ROS 2 is used across a wide range of robotics applications:
- Mobile ground robots and autonomous vehicles
- Robot arms and manipulators
- Drones and aerial vehicles
- Humanoid and legged robots
- Research platforms and educational robots
- Industrial automation systems
The ROS 2 ecosystem includes packages for navigation (Nav2), manipulation (MoveIt 2), simulation (Gazebo, Webots), computer vision (OpenCV integration), and much more. Most of these are open source and actively maintained.
Getting Started
The official starting point is the ROS 2 documentation at docs.ros.org. The current long-term support release is a good choice for beginners — it has the most community support, tutorials, and compatible packages.
You will need a Linux environment. Ubuntu is the most widely supported distribution. If you are on Windows or macOS, a virtual machine or Docker container running Ubuntu is a practical starting point.
The official tutorials walk you through installing ROS 2, writing your first node in Python or C++, creating topics, and building a simple publisher-subscriber system. Working through those tutorials hands-on is the most effective way to build an intuition for how the framework operates.
Summary
ROS 2 is the standard software framework for building robot systems. It provides a message-passing backbone that lets independent software components — nodes — communicate reliably without tight coupling. It handles the infrastructure so you can focus on the robotics problem you are actually trying to solve. If you are serious about robotics development, learning ROS 2 is one of the most valuable investments you can make.
