Build a reliable XRP baseline
Suggested learning milestones; follow the current official curriculum.
1. Communicate
- Identify hardware
- Connect correctly
- Run a basic example
2. Observe
- Try a short movement
- Read one sensor
- Record the result
3. Combine
- Use an official lesson
- Change one parameter
- Add upgrades later
EAR original educational guidance; conceptual learning steps, not product photography.
Your first XRP milestone should be modest: assemble the robot, establish a reliable connection and get a short movement exercise working. A robot that moves predictably is a better foundation than a robot covered in upgrades you have not yet learned to use.
This guide is an orientation to the current SparkFun XRP Kit, SKU KIT-27644. Use the official assembly and programming resources for exact instructions. EAR has not physically assembled or tested this kit, and this article does not replace its manual.
Identify your hardware before following a tutorial
Check the product name and controller generation. The current kit uses an RP2350B-based controller. Older XRP Beta instructions may reference different hardware. The complete kit includes a chassis; the DIY kit requires you to supply printed chassis parts. [1,2]
The controller already provides motor-drive connections and the kit’s basic sensing connections. You do not need to buy a separate general-purpose motor driver to complete the kit’s introductory exercises.
Prepare one usable work area
Use a clear table for assembly and an uncluttered floor area for movement exercises. Keep small parts in a tray. Separate the assembly area from the space where the robot will drive.
For the complete kit, supply the AA batteries and USB-C cable excluded from its contents. Use a data-capable cable appropriate for the computer, not a charge-only cable. Follow the official power guidance instead of substituting a random adapter. [1,3]
Have the current instructions open on the computer you intend to use. For a classroom, confirm device permissions before the lesson rather than discovering restrictions after assembly.
Assemble using the official sequence
Open the XRP learning and hardware resources and follow the instructions for your edition. Use the official chassis drawings and controller labels to identify connections.
The motor ports are labeled Motor L and Motor R, with additional ports for expansion. Dedicated connections are provided for the line and distance sensors. Connect each cable to the documented port; similar-looking connectors are not enough evidence of compatibility. [3]
Disconnect power when changing wiring. Keep wheels clear while establishing your first control connection. Do not modify solder jumpers as part of beginner setup.
Establish communication before testing movement

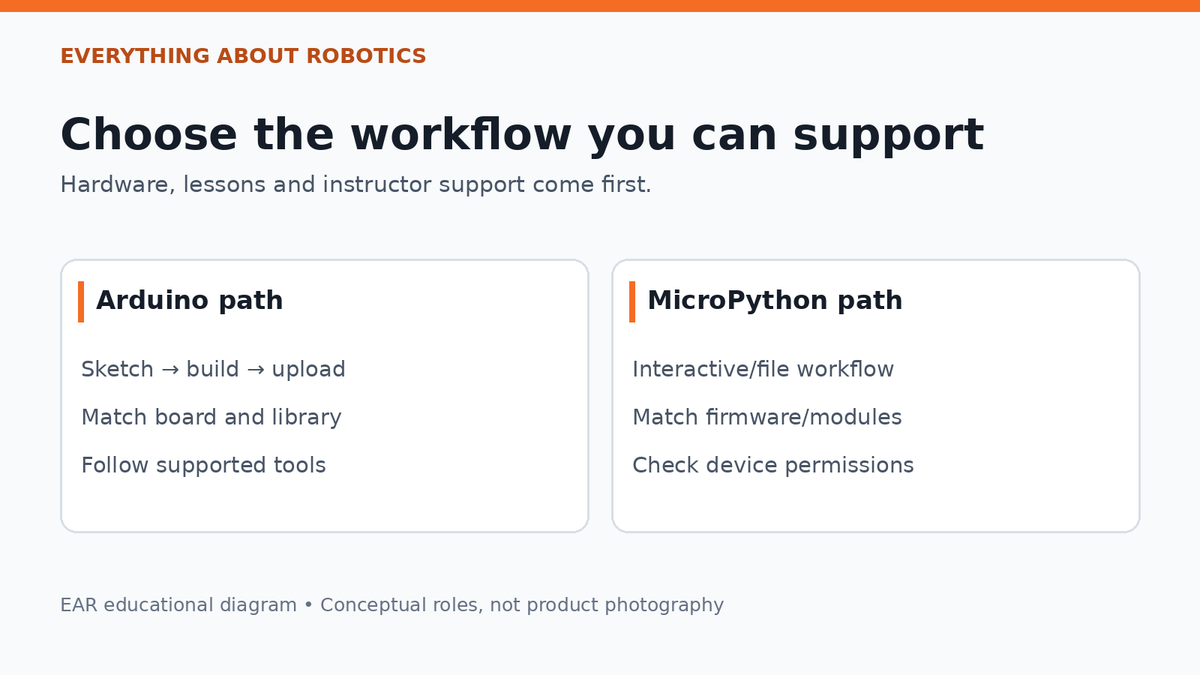

Follow the current setup instructions for the chosen programming pathway. The USB-C connector is used for programming and can power controller circuitry, but that does not prove the drive system has the intended motor power. [3]
Your first check is communication: can the programming environment recognize the correct controller and run its basic introductory example? Complete that before combining sensors, wireless connections and motion.
If the computer cannot see the device, work through one variable at a time: cable, port, hardware edition, permissions and the official firmware/setup instructions. Avoid changing all of them at once; it makes the actual fault harder to identify.
Work through three small learning milestones
Milestone 1 — controlled movement. Use the official introductory motor exercise. Begin with short commands in a clear area. Check whether the robot moves in the expected direction and can stop. Resolve a wrong direction or inactive wheel before adding a sensor task.
Milestone 2 — observe a sensor. Run the relevant official sensor example without trying to control the robot from it. Move an appropriate test object or line beneath the sensor and observe the reported values. The goal is to learn what the sensor actually reports.
Milestone 3 — connect observation to behavior. After the separate movement and sensing exercises work, use the curriculum’s obstacle or line-following lesson. Change one parameter at a time and record what happened.
These are suggested learning milestones, not a bench-tested EAR program. Motor speeds, stopping distances and sensor thresholds depend on the setup.
Troubleshoot by subsystem
| Symptom | First useful check |
|---|---|
| Computer cannot communicate | Data cable, permissions and correct setup instructions |
| Controller responds but wheels do not move | Documented motor power, motor connections and program state |
| One wheel behaves differently | Left/right connections and the official motor example |
| Sensor readings appear unchanged | Correct port, matching example and test conditions |
| Behavior changes as batteries run down | Power guidance and a repeatable baseline test |
The controller’s power switch does not disconnect power supplied through USB. A connected USB cable can therefore leave controller circuitry energized even with the switch off. Follow the official instructions when you need a fully disconnected system. [3]
Add upgrades after the baseline works
Qwiic expansion, vision and optical odometry are possible future topics. Start with one extension and verify its hardware generation, firmware and library requirements. A shared connector alone does not guarantee compatibility.
Keep a short notebook: hardware edition, software setup, example used, observation and next change. That notebook turns “the robot did something weird” into a problem you can investigate.

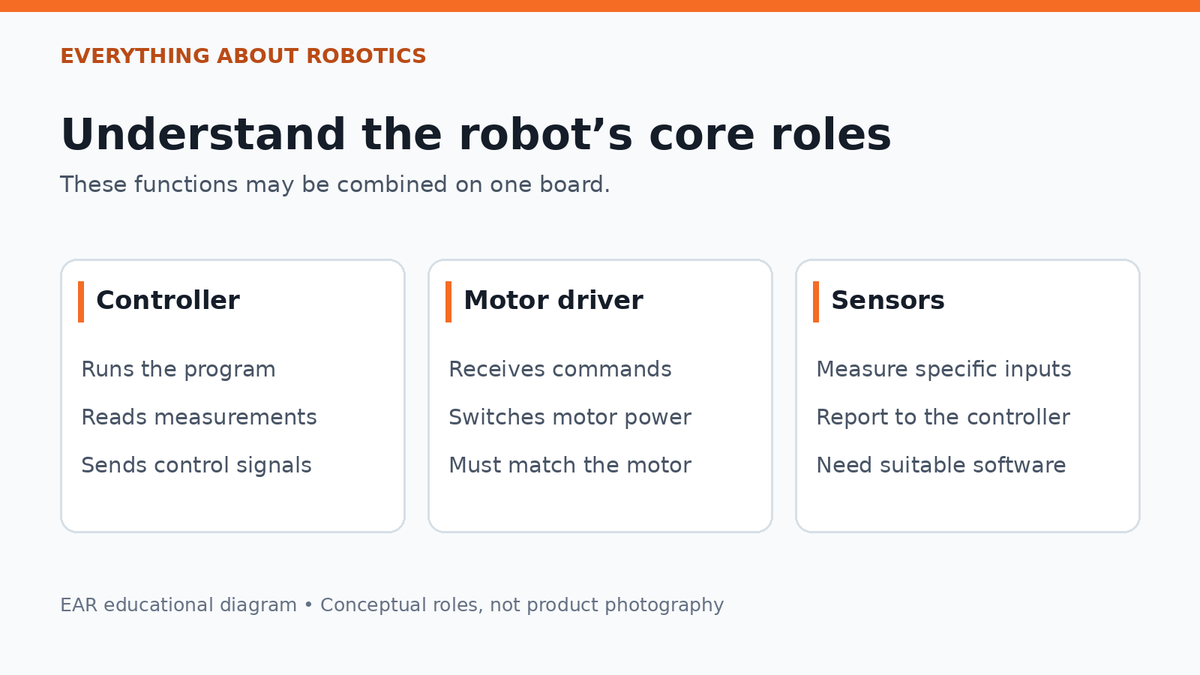

A controller runs the program, a motor driver delivers controlled motor power, and sensors report observations. Learn each subsystem separately before combining them.
