Why Sensors Matter in Robotics
A robot without sensors is blind. It can execute pre-programmed movements, but it has no way to know whether those movements are working, whether something is in the way, or whether the environment has changed. Sensors are what give a robot the ability to perceive the world and respond to it.
Every autonomous behavior you've ever seen a robot perform — navigating a warehouse, avoiding an obstacle, picking up an object, balancing on two legs — depends on sensors feeding information into the robot's decision-making system. Understanding sensors is therefore one of the most important foundations in robotics.

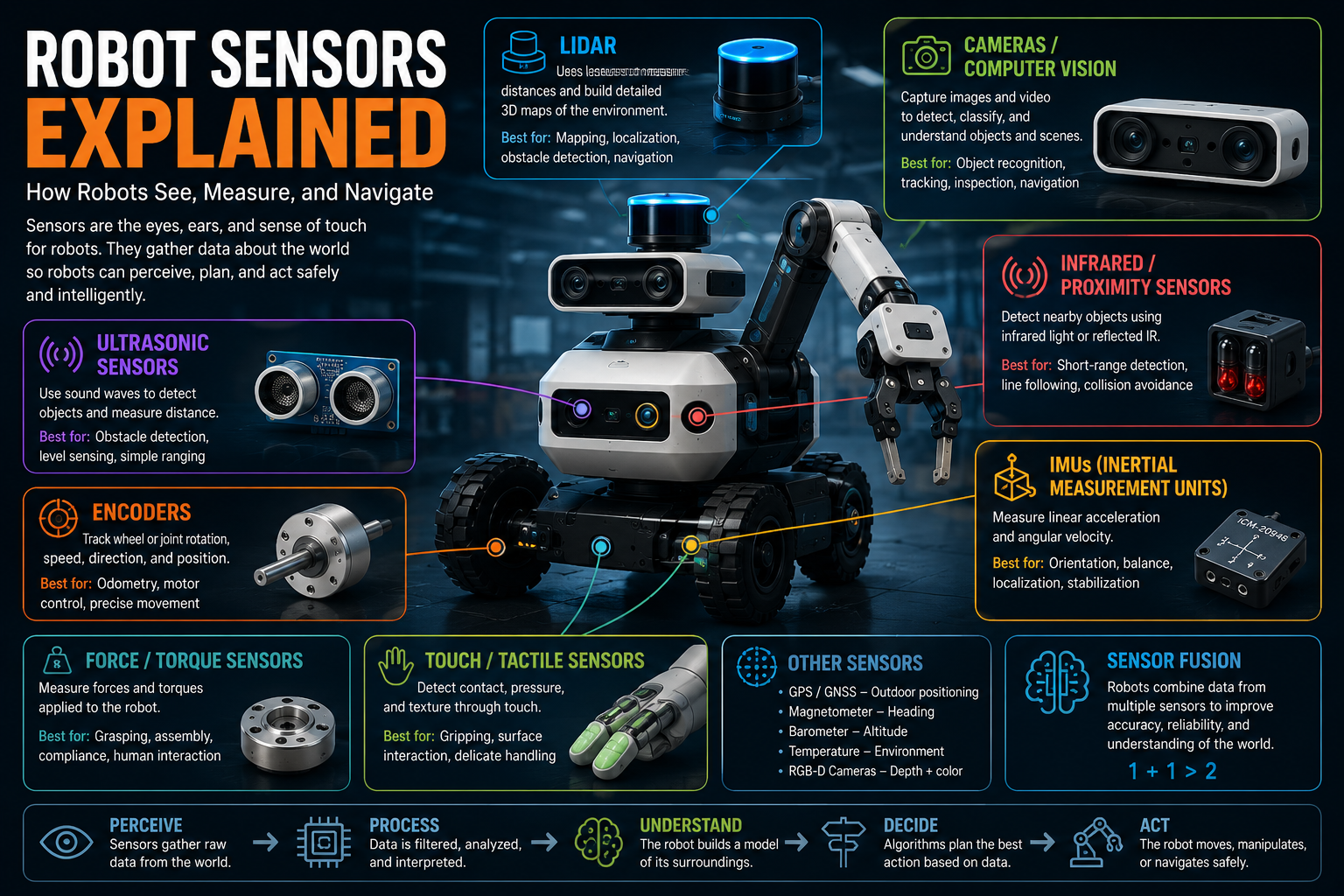

This guide covers the major sensor categories used in robotics today: what each one measures, how robots use that information, where each type excels, and where it falls short. It also explains sensor fusion — the practice of combining multiple sensors to get a more complete and reliable picture of the world than any single sensor can provide.
Cameras and Computer Vision
Cameras are the most information-rich sensors available to a robot. A single camera frame contains millions of data points — color, texture, shape, relative position, and more — that a robot can use to understand its environment.
What They Measure
A standard camera captures a two-dimensional grid of light intensity values across red, green, and blue channels. Depth cameras (also called RGB-D cameras) add a fourth channel: distance from the camera to each point in the scene, typically measured using structured light or time-of-flight technology.
How Robots Use Camera Data
Raw camera images are processed using computer vision algorithms and, increasingly, neural networks. Common tasks include:
- Object detection — identifying and locating objects in a scene
- Object recognition — classifying what an object is
- Pose estimation — determining the position and orientation of an object
- Visual odometry — estimating the robot's own movement by tracking how the scene changes between frames
- Lane and line detection — used in mobile robots and autonomous vehicles
Advantages
- Extremely high information density per measurement
- Passive sensing — no emitted signal required for standard cameras
- Can detect color, texture, and fine detail that other sensors miss
- Widely available and relatively inexpensive
Limitations
- Performance degrades significantly in poor lighting, glare, or darkness
- Processing camera data in real time requires significant computing power
- Standard cameras provide no direct depth information — inferring distance from 2D images is computationally expensive and error-prone
- Sensitive to visual clutter and scene complexity
LiDAR
LiDAR (Light Detection and Ranging) is one of the most important sensors in mobile robotics and autonomous vehicles. It provides precise, high-resolution distance measurements across a wide area, producing a detailed map of the robot's surroundings.
What It Measures
A LiDAR sensor emits pulses of laser light and measures how long each pulse takes to return after reflecting off a surface. From this time-of-flight measurement, it calculates the distance to each point. By sweeping the laser across a wide angle — or in multiple planes simultaneously — a LiDAR builds a point cloud: a three-dimensional map of distances to every surface in range.
How Robots Use LiDAR
- Mapping — building a detailed spatial map of an environment
- Localization — determining the robot's position within a known map
- Obstacle detection and avoidance — identifying objects in the robot's path
- SLAM (Simultaneous Localization and Mapping) — building a map and localizing within it at the same time
Advantages
- Very accurate distance measurements, typically to within a few centimeters
- Works in darkness — the sensor provides its own light source
- Wide field of view, often 360 degrees in 2D LiDAR
- Fast scan rates suitable for real-time navigation
Limitations
- More expensive than most other sensor types, particularly 3D LiDAR
- Struggles with highly reflective or transparent surfaces (mirrors, glass)
- Point clouds contain no color or texture information
- Performance can degrade in rain, fog, or heavy dust
Ultrasonic Sensors
Ultrasonic sensors are one of the simplest and most widely used distance sensors in beginner and hobbyist robotics. They're inexpensive, easy to interface with a microcontroller, and reliable for short-range obstacle detection.
What They Measure
An ultrasonic sensor emits a short burst of high-frequency sound (above the range of human hearing) and measures how long it takes for the echo to return. From this time-of-flight measurement, it calculates the distance to the nearest object in front of the sensor.
How Robots Use Ultrasonic Sensors
- Obstacle detection — stopping or turning before hitting an object
- Proximity sensing — detecting when an object enters a defined range
- Simple distance measurement — measuring the gap between the robot and a wall or surface
Advantages
- Very inexpensive and widely available
- Simple to use — most microcontroller platforms have ready-made libraries
- Works in darkness and is not affected by object color or surface finish (within limits)
- Suitable for detecting a wide range of materials
Limitations
- Limited range — typically effective from a few centimeters to about 4 meters
- Narrow effective detection cone — objects at sharp angles may not reflect the signal back
- Slow update rate compared to LiDAR or cameras
- Can produce inconsistent readings near soft or sound-absorbing surfaces
- Electrical noise from motors can interfere with readings
Infrared and Proximity Sensors
Infrared (IR) sensors use light in the infrared spectrum — invisible to the human eye — to detect nearby objects or measure short distances. They're common in consumer electronics and entry-level robotics.
What They Measure
Active infrared sensors emit an IR light beam and detect how much of it reflects back from a nearby surface. The amount of reflected light indicates how close an object is. Some IR sensors output a simple binary signal (object present / not present); others output an analog voltage proportional to distance.
How Robots Use IR Sensors
- Line following — detecting the contrast between a dark line and a light floor surface
- Edge detection — preventing a robot from driving off a table or ledge
- Short-range obstacle detection — similar to ultrasonic but at shorter ranges
Advantages
- Very inexpensive and compact
- Fast response time
- Simple to integrate
Limitations
- Highly sensitive to ambient light — sunlight and fluorescent lighting can cause false readings
- Performance varies significantly with surface color and reflectivity
- Very short effective range
- Not suitable for precise distance measurement
Encoders
Encoders measure rotation. In robotics, they're most commonly attached to motors or wheels to track how far and how fast each wheel has turned. This makes them essential for any robot that needs to know where it is or how far it has traveled.
What They Measure
A rotary encoder generates electrical pulses as a shaft rotates. By counting these pulses, a microcontroller can determine the angle of rotation, the speed of rotation, and — for a wheeled robot — the distance traveled by each wheel.
There are two main types:
- Incremental encoders — count pulses from a reference point; tell you how much the shaft has rotated since you started counting
- Absolute encoders — report the shaft's current angle regardless of previous position; more expensive but don't lose position information if power is interrupted
How Robots Use Encoders
- Odometry — estimating the robot's position and heading by integrating wheel movements over time
- Speed control — measuring actual motor speed so a controller can adjust power to maintain a target speed
- Precise motion — commanding a robot to move exactly 50 cm forward or turn exactly 90 degrees
Advantages
- Accurate and reliable for measuring rotation
- Fast update rates
- Not affected by lighting or environmental conditions
- Inexpensive for incremental types
Limitations
- Odometry accumulates error over time — small measurement errors add up, causing the robot's estimated position to drift from its actual position
- Wheel slip (on slippery surfaces or during sharp turns) causes incorrect distance readings
- Encoders measure motor shaft rotation, not actual ground contact — they can't detect if the robot is being pushed or carried
IMUs — Inertial Measurement Units
An IMU measures the forces and rotations acting on a robot's body. It's the sensor that tells a robot whether it's tilting, accelerating, turning, or vibrating — information that's essential for balance, navigation, and motion control.
What They Measure
A typical IMU combines two types of sensors:
- Accelerometer — measures linear acceleration along one or more axes. At rest, it measures the direction and magnitude of gravity, which can be used to determine tilt angle.
- Gyroscope — measures angular velocity (rate of rotation) around one or more axes.
Many IMUs also include a magnetometer (compass), which measures the direction of the Earth's magnetic field and can be used to determine absolute heading.
How Robots Use IMUs
- Balance and stabilization — balancing robots (like two-wheeled self-balancing platforms) use IMU data to detect tilt and correct it in real time
- Heading estimation — tracking which direction the robot is facing
- Dead reckoning — estimating position by integrating acceleration and rotation over time
- Vibration detection — identifying mechanical problems or rough terrain
- Flight control — IMUs are central to drone stabilization and autopilot systems
Advantages
- Measures motion directly — not dependent on external references
- Very fast update rates (hundreds to thousands of measurements per second)
- Compact and inexpensive in MEMS form
- Works in any environment
Limitations
- Gyroscopes drift over time — small errors in angular velocity accumulate into significant heading errors
- Accelerometers are noisy and sensitive to vibration
- Dead reckoning from IMU data alone accumulates large position errors quickly
- Magnetometers are sensitive to nearby metal and electromagnetic interference
Force and Torque Sensors
Force and torque sensors measure the mechanical forces acting on a robot — how hard it's pushing, how much load it's carrying, or whether it's making contact with an object. They're particularly important in robot arms and manipulation systems.
What They Measure
A force sensor measures the magnitude of a force along one or more axes. A torque sensor measures rotational force (twisting). Six-axis force/torque sensors measure all three linear forces and all three torques simultaneously, giving a complete picture of the mechanical interaction at a point.
How Robots Use Force and Torque Sensors
- Compliant manipulation — adjusting grip force to handle fragile objects without crushing them
- Contact detection — knowing when the robot has made contact with a surface or object
- Assembly tasks — detecting when a part has seated correctly or when resistance indicates misalignment
- Human-robot collaboration — detecting unexpected contact with a person and stopping safely
Advantages
- Provides information that no other sensor type can — direct measurement of mechanical interaction
- Essential for tasks requiring delicate or precise force control
Limitations
- More expensive than most other sensor types, particularly six-axis units
- Mechanically complex to integrate into a robot's structure
- Sensitive to overload — exceeding the rated force can damage the sensor
Touch and Tactile Sensing
Tactile sensors give a robot a sense of touch — the ability to detect contact, pressure distribution, and surface texture across an area rather than at a single point. They're most relevant in robotic hands and grippers.
What They Measure
Tactile sensor arrays measure the distribution of pressure across a surface, similar to how the skin on a human fingertip detects the shape and texture of an object being held. Some advanced tactile sensors can also detect shear forces (the tendency of an object to slip sideways in a grip) and vibration.
How Robots Use Tactile Sensors
- Slip detection — sensing when an object is beginning to slip from a gripper and adjusting grip force before it falls
- Object identification — inferring shape, texture, and stiffness from contact patterns
- Delicate manipulation — handling objects that are too fragile or irregular for force-only control
Advantages
- Provides spatial contact information that point force sensors cannot
- Enables more natural and capable manipulation
Limitations
- Technically challenging to manufacture reliably at scale
- Durability is a concern — tactile sensor surfaces are subject to wear
- Processing tactile data in real time adds computational complexity
Sensor Fusion: Combining Sensors for a Better Picture
No single sensor is perfect. Every sensor type has blind spots, failure modes, and conditions under which its measurements become unreliable. Real robots — particularly autonomous ones — address this by combining data from multiple sensors, a practice called sensor fusion.
Why Sensor Fusion Matters
Consider a mobile robot navigating a warehouse. Its wheel encoders track how far it has traveled, but encoder odometry drifts over time. Its IMU tracks heading, but gyroscope drift causes heading errors to accumulate. Its LiDAR provides accurate distance measurements to walls and obstacles, but can't tell the robot its absolute position in the building. Its camera can recognize landmarks, but struggles in low light.
None of these sensors alone is sufficient for reliable long-term navigation. Together, they complement each other's weaknesses. A sensor fusion algorithm — such as a Kalman filter or a particle filter — combines all of these inputs, weighing each one according to its reliability in the current conditions, to produce a position and orientation estimate that is more accurate and more robust than any single sensor could provide.
Common Sensor Fusion Combinations
- Encoders + IMU — combining wheel odometry with inertial measurements to reduce drift in position and heading estimates
- LiDAR + IMU — fusing point cloud data with inertial measurements for robust SLAM in dynamic environments
- Camera + LiDAR — combining the rich visual detail of cameras with the precise depth measurements of LiDAR, used extensively in autonomous vehicles
- Camera + IMU — visual-inertial odometry, used in drones and AR/VR systems where LiDAR is too heavy or expensive
The Principle Behind Fusion
The core idea is that different sensors have different error characteristics. An accelerometer is noisy in the short term but accurate on average over time. A gyroscope is accurate in the short term but drifts over time. By combining them — using the gyroscope for fast, short-term rotation estimates and the accelerometer to correct long-term drift — you get a heading estimate that is better than either sensor alone. This complementary relationship is what makes sensor fusion so powerful.
Choosing the Right Sensors
There's no universal answer to which sensors a robot should use. The right combination depends on what the robot needs to do, where it operates, and what constraints apply to cost, weight, and computing power.
A few practical principles:
- Start with the simplest sensor that can solve your problem. An ultrasonic sensor is sufficient for basic obstacle avoidance; you don't need LiDAR for a beginner project.
- Add sensors when you encounter limitations. If your robot's navigation drifts too much with encoders alone, add an IMU. If the IMU isn't enough, add LiDAR.
- Think about failure modes. What happens if a sensor gives a bad reading? Redundant sensors and fusion algorithms make systems more robust.
- Consider the environment. A camera-based system that works perfectly indoors may fail in direct sunlight. A LiDAR that works in a clean warehouse may struggle in a dusty outdoor environment.
Summary
Sensors are the foundation of robot perception. Without them, a robot is executing instructions blindly. With them, it can measure the world, detect changes, make decisions, and adapt its behavior in real time.
The major sensor categories — cameras, LiDAR, ultrasonic, infrared, encoders, IMUs, force/torque sensors, and tactile sensors — each have distinct strengths and weaknesses. Understanding what each one measures and where it excels is one of the most useful things you can learn as you go deeper into robotics.
As you build more complex robots, you'll find yourself combining sensors rather than relying on any single one. That's not a workaround for sensor limitations — it's how real robotic systems are designed. The ability to fuse imperfect information from multiple sources into a reliable picture of the world is one of the defining challenges and achievements of modern robotics.
