What Is Machine Vision?
Machine vision is the use of cameras, sensors, lighting, and computer software to allow a machine or robot to visually inspect and understand its surroundings.
In industrial automation, machine vision gives robots something similar to eyesight. A camera captures an image, software analyzes it, and the system uses that information to make a decision or guide an action.
That might mean finding a part on a conveyor, checking whether a product was assembled correctly, reading a barcode, measuring a component, or telling a robot exactly where to move.

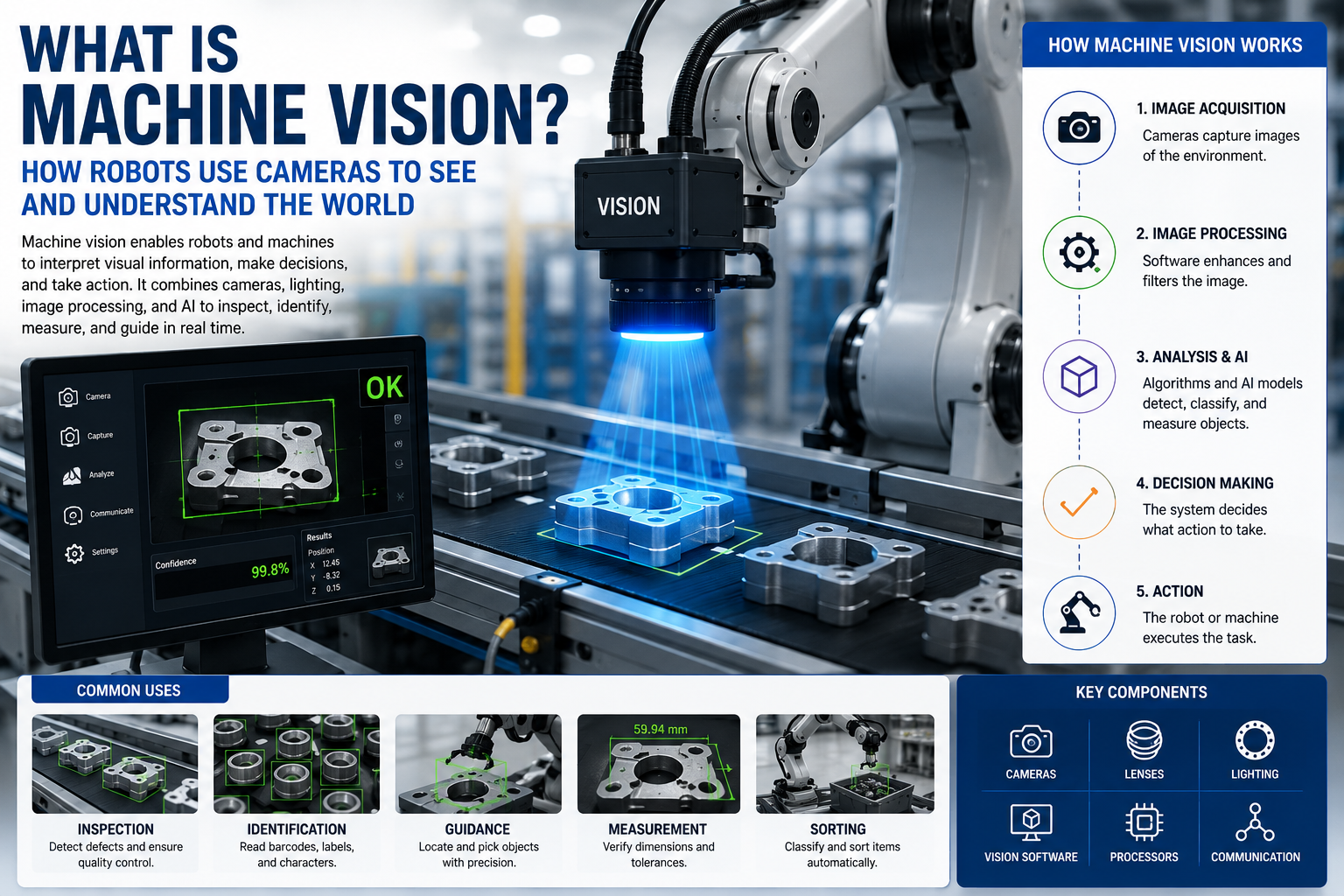

How Machine Vision Works
A basic machine vision system follows a simple process:
- Capture — A camera takes an image.
- Process — Software analyzes the image.
- Identify — The system finds objects, features, defects, or measurements.
- Decide — The software determines what should happen.
- Act — A robot, conveyor, machine, or operator responds.
This entire process can happen in fractions of a second.
Cameras and Image Sensors
The camera is the eye of the machine vision system.
Industrial cameras typically use CMOS or CCD image sensors that convert incoming light into digital information. Depending on the application, cameras may capture color, monochrome, infrared, depth, or other visual information.
Camera resolution also matters. A system inspecting tiny electronic components may require much greater image detail than one simply determining whether a large box is present.
Why Lighting Matters
One of the most important—and sometimes overlooked—parts of machine vision is lighting.
The computer can only analyze features that the camera can clearly see.
Industrial vision systems may use:
- Ring lights
- Backlighting
- Bar lights
- Diffused lighting
- Structured light
- Infrared illumination
Good lighting can make edges, defects, labels, shapes, and surface features easier for vision software to detect consistently.
What Machine Vision Can Detect
Modern machine vision systems can perform many different tasks.
Object Detection
The system determines whether an object is present and where it is located.
Classification
Software identifies what type of object appears in the image.
Measurement
Machine vision can measure dimensions, distances, angles, gaps, and other physical characteristics.
Defect Detection
Vision systems can inspect products for scratches, missing components, incorrect assembly, contamination, or other defects.
Barcode and Text Reading
Cameras can read barcodes, QR codes, serial numbers, labels, and printed text.
Position and Orientation
A vision system can determine where an object is located and how it is oriented so a robot can interact with it.
How Robots Use Machine Vision
Without vision, a robot generally depends on objects being placed in predictable locations.
For example, a robot might be programmed to move to a precise coordinate and pick up a component. If that component moves several centimeters, the robot may miss it.
Machine vision changes that.
A camera can locate the component and send its position to the robot controller. The robot can then adjust its movement based on where the object actually is.
This capability is known as vision-guided robotics.
Pick-and-Place Applications
Vision-guided pick-and-place is one of the most common robotic applications.
Products may arrive randomly positioned on a conveyor. The vision system identifies each object, determines its location and orientation, and sends coordinates to the robot.
The robot then picks the object and places it where it belongs.
This allows automation systems to handle variation that would otherwise require precise mechanical positioning.
Machine Vision for Quality Inspection
Inspection is another major use of machine vision.
Instead of relying entirely on human inspectors, manufacturers can place cameras directly on production lines.
Every product can potentially be inspected for characteristics such as:
- Correct dimensions
- Missing components
- Surface defects
- Proper labeling
- Correct assembly
- Package integrity
Because computers can perform the same inspection repeatedly without fatigue, machine vision is particularly useful for high-volume manufacturing.
2D vs. 3D Machine Vision
Traditional machine vision primarily analyzes two-dimensional images.
A 2D system sees height and width but has limited information about depth.
3D machine vision adds depth information, allowing the system to understand the shape and position of objects in three-dimensional space.
Technologies used for 3D vision include stereo cameras, structured-light sensors, time-of-flight cameras, and laser scanners.
3D vision is especially useful for robotic picking, bin picking, navigation, dimensional inspection, and handling objects with irregular shapes.
Machine Vision and Artificial Intelligence
Traditional machine vision often relies on explicitly programmed rules.
For example, software might look for a specific edge, color, shape, or measurement.
AI-based computer vision can instead learn patterns from large collections of images.
Machine-learning models can help recognize objects or defects that are difficult to describe using simple rules.
The two approaches are increasingly used together: conventional vision handles predictable measurements and geometry while AI helps interpret more complicated visual variation.
Machine Vision and the Future of Robotics
Machine vision is becoming increasingly important as robots move into less structured environments.
A robot that can only perform movements at predetermined coordinates works well when everything around it remains predictable.
A robot that can see can adapt.
As cameras, depth sensors, AI models, and edge computing continue improving, robots will become better at identifying objects, understanding scenes, inspecting products, and responding to changes around them.
Machine vision therefore isn't simply another sensor technology.
It is one of the key technologies transforming robots from machines that repeat programmed movements into systems that can perceive and react to the physical world.
