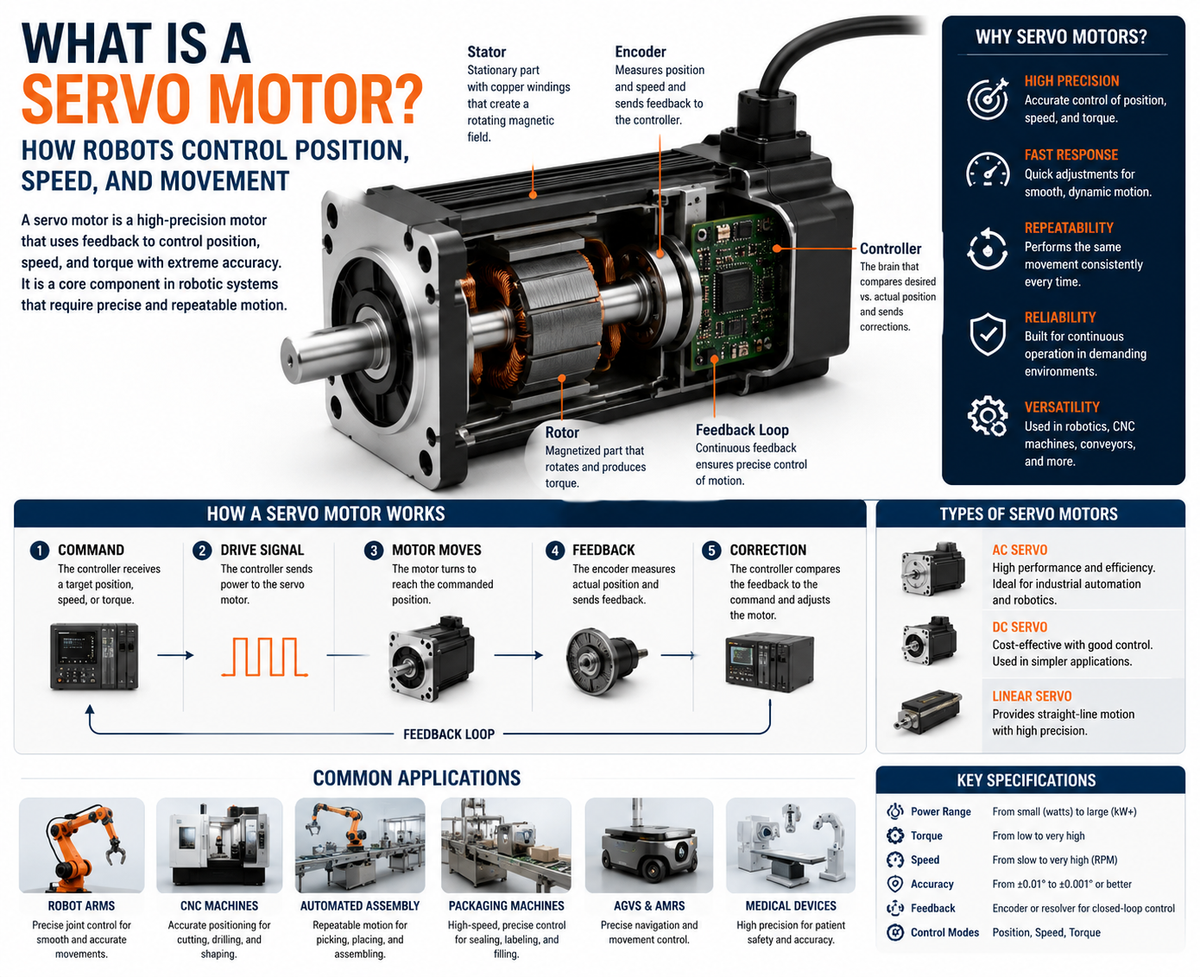

What Is a Servo Motor?
A servo motor is a motor designed for precise control of position, speed, and movement. Unlike a basic motor that simply spins when power is applied, a servo system continuously checks what the motor is doing and corrects its movement when necessary.
That ability to measure and correct motion is what makes servo motors so important in robotics. They are used anywhere a machine needs to move accurately, repeatedly, and predictably.
How a Servo Motor Works
A servo system operates using closed-loop control.
The basic process looks like this:
- Command — A controller tells the servo where to move or how fast to rotate.
- Movement — The motor begins moving toward the commanded position or speed.
- Measurement — A sensor measures what the motor actually did.
- Comparison — The controller compares the actual movement with the commanded movement.
- Correction — If there is an error, the controller adjusts the motor.
- Repeat — This process happens continuously while the system operates.
This continuous correction is called a feedback loop.
For example, if a robot arm is commanded to rotate a joint exactly 45 degrees, the servo doesn't simply estimate how long the motor should run. It measures the joint's actual movement and keeps correcting it until the commanded position is reached.
The Main Parts of a Servo System
A complete servo system typically includes several components working together.
Motor
The motor produces the physical rotation that moves the robot or machine.
Depending on the application, servo systems may use AC motors, DC motors, brushless motors, or other motor designs.
Encoder
The encoder measures the motor's movement.
It can provide information about:
- Position
- Speed
- Direction
- Rotation
The encoder sends this information back to the controller.
Servo Drive
The servo drive controls the electrical power delivered to the motor.
It receives commands from the controller and adjusts the motor's power based on feedback from the encoder.
Controller
The controller determines what the machine should do.
In a robot, this might mean commanding several servo motors simultaneously so multiple joints move together to place the end effector at a specific location.
Position Control
One of the biggest advantages of servo motors is precise position control.
Imagine a robotic arm picking up an electronic component.
The robot may need to:
- Rotate its base 30 degrees
- Raise its shoulder joint
- Bend its elbow
- Rotate its wrist
- Position the gripper within millimeters of the component
Each joint must reach a specific position.
Servo motors make this coordinated movement possible.
Speed Control
Servo systems can also precisely control speed.
Instead of simply turning a motor on or off, the controller can command a specific rotational speed and continuously adjust the motor to maintain it.
This is important in applications such as:
- Conveyor systems
- CNC machines
- Packaging equipment
- Mobile robots
- Automated manufacturing
Torque Control
Many servo systems can also control torque, which is the rotational force produced by the motor.
Torque control becomes important when a robot interacts physically with objects.
For example, a robotic gripper may need enough force to hold an object securely without crushing it.
Industrial robots may also monitor torque to detect unexpected resistance or collisions.
Why Robots Use Servo Motors
Robots require controlled motion rather than uncontrolled rotation.
Servo motors provide several important advantages:
Precision
Servo systems can achieve extremely accurate positioning.
Repeatability
A robot can return to the same position thousands of times with very little variation.
Fast Response
Servo systems can accelerate, decelerate, and change direction quickly.
Feedback
The robot knows whether the commanded movement actually occurred.
Coordinated Motion
Multiple servo motors can work together to produce complex movements.
These characteristics make servo systems particularly useful for robot arms, humanoid robots, autonomous machines, manufacturing equipment, and precision automation.
Servo Motors vs. Stepper Motors
Servo motors and stepper motors are both commonly used for controlled motion, but they operate differently.
A stepper motor moves in predefined increments called steps. Many stepper systems operate without continuously measuring the motor's actual position.
A servo system typically uses feedback to verify movement.
Stepper motors are often attractive because they are simple and inexpensive. Servo systems generally offer better performance when applications require high speed, high torque, precise feedback, or demanding motion control.
Neither technology is automatically better. The correct choice depends on the application.
Servo Motors in Robot Arms
Robot arms are one of the clearest examples of servo control.
Each major joint usually contains a motor, gearbox, position sensor, and control electronics.
When the robot receives a command to move its end effector, software calculates how each joint must move. The servo controllers then coordinate those movements.
This allows an industrial robot to perform tasks such as:
- Welding
- Assembly
- Painting
- Machine tending
- Pick-and-place
- Packaging
- Inspection
The smooth movement of a robot arm is actually the result of several servo-controlled joints constantly adjusting their positions.
Servo Motors in Mobile Robots
Servo systems aren't limited to robot arms.
Autonomous mobile robots may use servo-controlled motors for wheel movement, steering systems, sensor positioning, or other mechanisms.
Precise motor feedback helps the robot understand how far its wheels have rotated, which can contribute to estimating how far the robot has traveled.
That information can then be combined with LiDAR, cameras, IMUs, and other sensors for navigation.
The Feedback Loop Is the Key
The most important concept to understand about servo motors is not the motor itself.
It is feedback.
A servo system does not simply issue a command and hope the machine performs it correctly. It measures what actually happened, compares that measurement with what was supposed to happen, and makes corrections.
That cycle —
command → movement → measurement → comparison → correction
— happens continuously.
And that same idea appears throughout robotics.
Robots sense the world, compare what they observe with what they want to accomplish, and adjust their behavior accordingly.
Servo motors are one of the clearest mechanical examples of that fundamental robotics principle.
