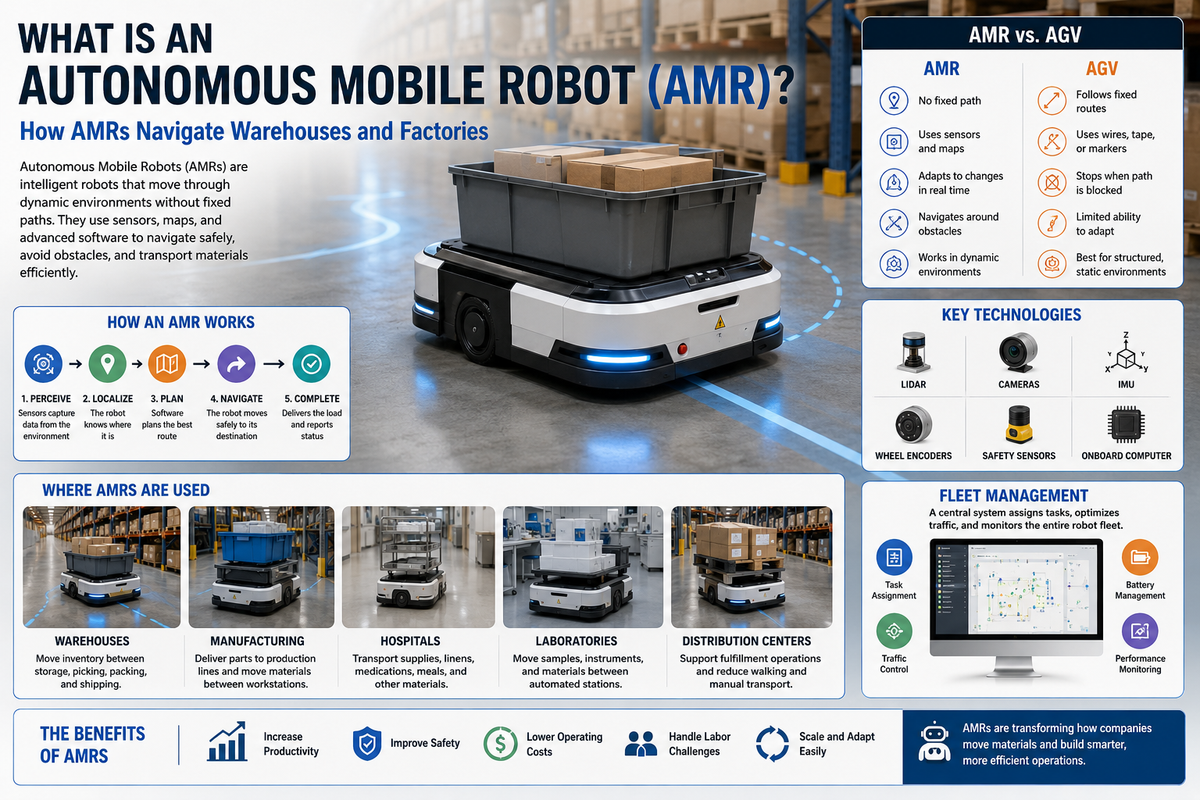

What Is an Autonomous Mobile Robot?
An Autonomous Mobile Robot, or AMR, is a robot designed to move through an environment without following a permanently fixed path.
AMRs are increasingly used in warehouses, factories, hospitals, distribution centers, and other facilities to transport materials, products, tools, and equipment.
Unlike older mobile automation systems that depend on wires, magnetic strips, reflectors, or predetermined routes, AMRs can use sensors, maps, and navigation software to determine where they are and how to reach their destination.
How an AMR Works
An AMR combines several technologies into one mobile robotic system.
A typical AMR includes:
- Electric drive motors
- Batteries
- Wheel encoders
- LiDAR
- Cameras or depth sensors
- Inertial measurement units
- Safety sensors
- An onboard computer
- Navigation software
- Wireless connectivity
Together, these systems allow the robot to perceive its surroundings, determine its location, plan a route, and move safely through the facility.
AMRs vs. AGVs
AMRs are often compared with Automated Guided Vehicles, or AGVs.
Traditional AGVs generally follow predefined routes using technologies such as magnetic tape, embedded wires, QR markers, or reflectors.
An AMR operates differently.
Instead of simply following a fixed path, an AMR maintains a map of its environment and calculates a route to its destination.
If something blocks that route, an AGV may stop and wait.
An AMR can potentially identify the obstruction and calculate another safe path around it.
This ability to adapt is one of the biggest differences between AMRs and traditional guided vehicles.
How AMRs Know Where They Are
Before an AMR can travel anywhere, it must determine its position within the facility.
This process is called localization.
AMRs may combine information from:
- LiDAR
- Cameras
- Wheel encoders
- IMUs
- Depth sensors
- Visual landmarks
The navigation system compares this sensor information with a stored map to continuously estimate the robot's position and orientation.
SLAM and Mapping
When an AMR enters a new environment, it may use SLAM — Simultaneous Localization and Mapping — to create a map.
As the robot moves, sensors measure walls, shelving, equipment, and other environmental features.
The software uses those measurements to build a digital representation of the facility while simultaneously estimating the robot's position within it.
Once the map is established, the AMR can use it for future navigation.
Path Planning
Knowing where the robot is isn't enough.
The AMR also needs to determine how to reach its destination.
Path-planning software evaluates the map and calculates a route through areas the robot can safely traverse.
The system considers obstacles, available space, the robot's dimensions, and its movement capabilities.
The resulting route provides a planned path from the robot's current location to its destination.
Avoiding People and Obstacles
Warehouses and factories are constantly changing.
Workers walk through aisles. Forklifts move pallets. Carts appear. Boxes are temporarily placed on floors.
An AMR therefore needs to react to objects that may not exist on its stored map.
Live sensor data allows the robot to detect these changes.
Depending on the situation, the navigation system may slow the robot, stop it, or calculate another route around the obstruction.
What AMRs Carry
AMRs can be configured for many different transportation jobs.
Some carry shelving or racks.
Others transport totes, bins, pallets, tools, parts, or finished products.
An AMR may also be equipped with:
- Conveyor modules
- Lift mechanisms
- Robotic arms
- Pallet-handling systems
- Shelving
- Custom fixtures
The mobile base provides transportation while the equipment mounted on top determines the specific job.
Where AMRs Are Used
Warehouses
AMRs transport inventory between storage, picking, packing, and shipping areas.
Manufacturing
Robots can deliver components to production lines and move finished assemblies between workstations.
Hospitals
Mobile robots can transport linens, medications, meals, supplies, and other materials.
Laboratories
AMRs can move samples, instruments, or materials between automated laboratory stations.
Distribution Centers
Large fleets can move goods throughout fulfillment operations and reduce the amount of walking required from workers.
Fleet Management
Facilities often operate many AMRs simultaneously.
A fleet management system coordinates these robots.
Instead of independently choosing jobs, robots can receive assignments from centralized software.
The fleet manager may decide which robot should perform each task based on factors such as:
- Current location
- Battery level
- Traffic
- Robot availability
- Payload capability
- Job priority
It can also coordinate traffic so dozens or hundreds of robots can share the same facility.
AMRs and Warehouse Software
AMRs become even more useful when connected with other business systems.
Fleet software may integrate with:
- Warehouse Management Systems (WMS)
- Warehouse Execution Systems (WES)
- Manufacturing Execution Systems (MES)
- Enterprise Resource Planning systems (ERP)
An order entering the warehouse software can ultimately create transportation tasks for robots automatically.
Charging and Battery Management
AMRs typically use rechargeable batteries.
Rather than requiring workers to manually plug them in, many systems can automatically travel to charging stations.
Fleet software can monitor battery levels and schedule charging around workload.
Some systems use opportunity charging, allowing robots to recharge during short periods when demand is low.
Why Companies Use AMRs
The value of an AMR isn't simply that it can drive around a warehouse.
Its real value comes from automating material movement.
Workers in large facilities can spend substantial amounts of time walking, pushing carts, or transporting products between locations.
AMRs can take over portions of that transportation work while people concentrate on picking, assembly, inspection, maintenance, and other tasks.
The Future of AMRs
AMRs are becoming an important foundation for physical automation.
Improvements in LiDAR, computer vision, batteries, artificial intelligence, wireless networking, and fleet-management software are making mobile robots more capable and easier to deploy.
Future systems will increasingly combine mobility with robotic manipulation, allowing machines not only to transport objects but also to identify, pick, handle, and place them.
The AMR is therefore evolving from a robotic transport platform into a more general-purpose autonomous machine for moving through and working within the physical world.
