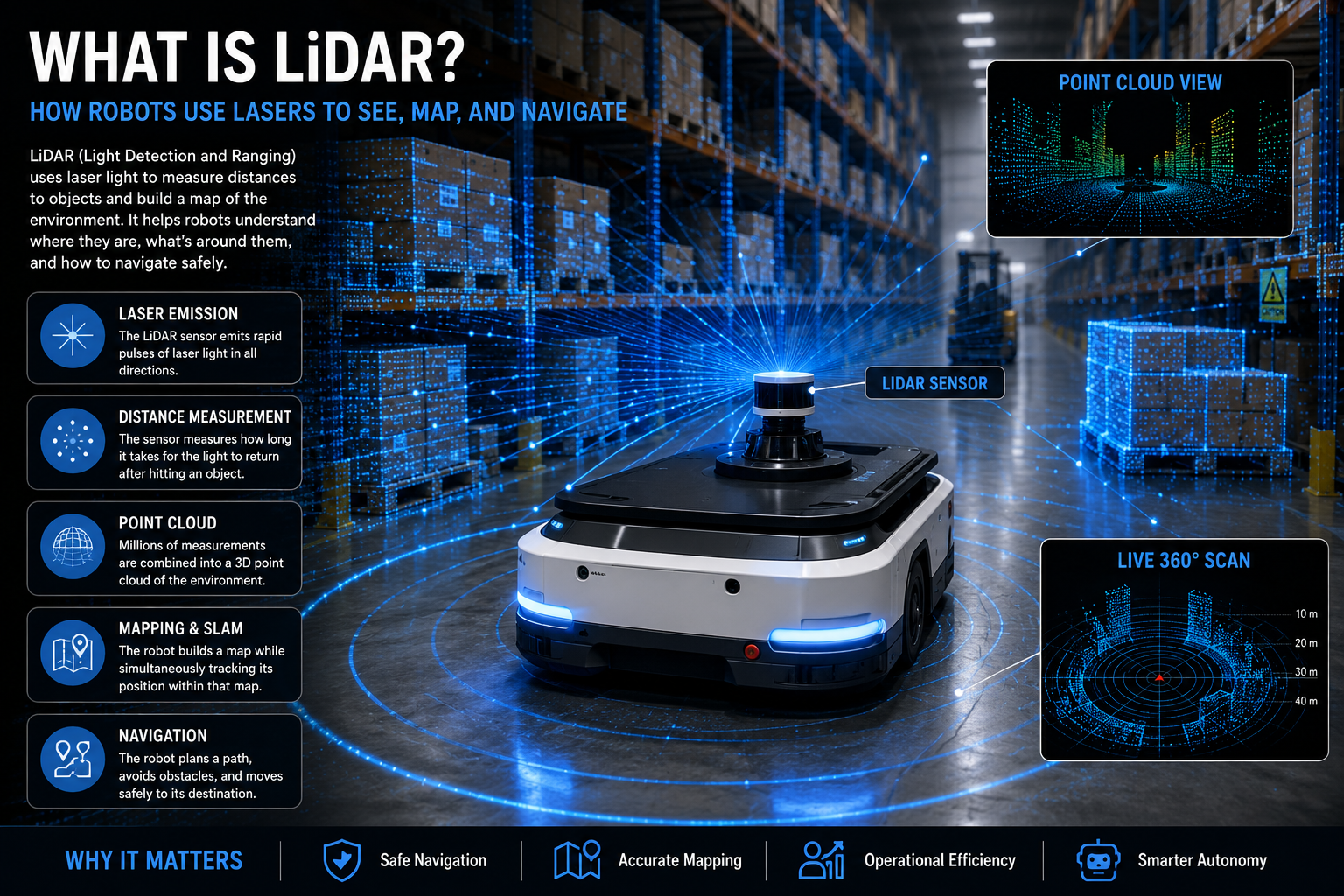

What Is LiDAR?
LiDAR is a sensing technology that uses laser light to measure distances between a sensor and objects in the surrounding environment. The name comes from Light Detection and Ranging.
In robotics, LiDAR helps machines understand the physical space around them. A mobile robot can use LiDAR to detect walls, shelving, equipment, people, and other obstacles while building a map and determining where it is within that map.
How LiDAR Works
A LiDAR sensor sends out pulses of laser light and measures how long those pulses take to reflect from an object and return to the sensor.
Because the speed of light is known, the sensor can calculate distance from the travel time.
This process happens extremely quickly, producing thousands or even millions of measurements that describe the robot's surroundings.
These measurements are commonly represented as a point cloud—a collection of points showing where surfaces and objects exist in space.
2D LiDAR
Many autonomous mobile robots use 2D LiDAR.
The sensor scans horizontally around the robot, creating a slice of the environment at a particular height.
From those measurements, the robot can detect walls, shelving, machinery, people, pallets, and other obstacles.
2D LiDAR is widely used for indoor navigation because it can provide accurate distance measurements without requiring enormous amounts of computing power.
3D LiDAR
3D LiDAR captures measurements across both horizontal and vertical directions.
Instead of producing a flat map, it creates a three-dimensional representation of the environment.
This allows robots to understand objects of different heights and more complicated surroundings.
3D LiDAR is commonly associated with autonomous vehicles, outdoor robots, advanced mobile robots, drones, and robotic systems operating in less structured environments.
LiDAR and Robot Mapping
One of LiDAR's most important robotics applications is mapping.
As a robot moves through an unfamiliar building, the sensor continuously measures distances to surrounding surfaces.
Software combines those measurements into a map showing features such as:
- Walls
- Hallways
- Shelving
- Equipment
- Doorways
- Obstacles
- Open travel areas
The robot can then use this map to plan routes through the environment.
LiDAR and SLAM
LiDAR is frequently used with SLAM — Simultaneous Localization and Mapping.
SLAM solves two problems at the same time:
Where am I?
and
What does the environment around me look like?
The robot compares new LiDAR measurements with its existing map to estimate its position while continuously updating that map.
This allows autonomous robots to navigate environments without following magnetic strips, wires, or permanently installed tracks.
Obstacle Detection
LiDAR also provides continuous information about obstacles around the robot.
If a person, pallet, cart, or other object appears in the robot's path, the sensor can detect the change.
The robot's navigation system can then respond by slowing down, stopping, or calculating another route.
This ability is one reason LiDAR has become an important technology for autonomous mobile robots operating in warehouses and factories.
LiDAR vs. Cameras
LiDAR and cameras provide different kinds of information.
A camera captures rich visual information such as color, texture, labels, and appearance.
LiDAR is particularly good at measuring distance and geometry.
A camera may recognize that an object is a cardboard box. LiDAR may provide highly useful information about exactly where that box is located relative to the robot.
Many advanced robotic systems therefore use both technologies.
LiDAR vs. Ultrasonic Sensors
Ultrasonic sensors measure distance using sound waves rather than light.
They are inexpensive and useful for simple proximity detection, but generally provide much less environmental detail than LiDAR.
A robot may use ultrasonic sensors to answer:
"Is something directly in front of me?"
LiDAR can help answer a much larger question:
"What does the space around me look like?"
Why Robots Use Multiple Sensors
LiDAR is powerful, but robots rarely depend on a single sensor.
An autonomous robot may combine LiDAR with:
- Cameras
- Wheel encoders
- Inertial measurement units
- Ultrasonic sensors
- Depth cameras
- GPS outdoors
Combining information from multiple sensors is known as sensor fusion.
Each sensor provides different information, allowing the robot to build a more reliable understanding of its position and surroundings.
Where LiDAR Is Used
LiDAR appears across many robotic systems, including:
- Autonomous mobile robots
- Warehouse robots
- Delivery robots
- Autonomous vehicles
- Agricultural robots
- Mining robots
- Drones
- Mapping systems
- Security robots
- Research platforms
The exact sensor depends on the environment, required range, accuracy, field of view, and cost of the robotic system.
LiDAR and the Future of Autonomous Robots
For a robot to move independently, it needs reliable information about the physical world around it.
LiDAR provides something extremely valuable: precise measurements of space.
Combined with SLAM, cameras, computer vision, and other sensors, LiDAR allows robots to map environments, estimate their location, detect obstacles, and navigate without fixed paths.
That makes LiDAR one of the foundational sensing technologies behind modern autonomous robotics.
